CAR WASH EQUIPMENT

In-Bay Wall Mount System - Stainless Steel

• Stainless steel travel rails (34’ 0” overall length)

• Stainless steel wall mounting hardware

• Floor mounted blue reflectors for visual guidance

• Wash bay stop / backup loading eye wall mounting kit - Standard bays

• Wash bay stop / backup loading eye pedestal mounting kit -   Free standing frame or non-standard bays

Overhead Carriage and Trolley Frame - Laser Cut Stainless Steel

• High gloss composite wash carriage and side wash media covers with  blue LED accent lighting on entrance carriage cover

• Dual 10” long red and green LEDsmounted on entrance cover

• Variable frequency controlled belt drive carriage and trolley movements• VS2® (Vehicle Sizing System)

• DSP (Digital Surface Profile) technology

• Composite Energy Chain for electrical and solution distribution

• Super soft blue polyethylene foam wash media (side and top)

• Clean Rinse System - Wash media cleaning and lubricating system

• Stainless steel carriage, climate proof motors and gearboxes

• Flex Pass® dual application system

Solution Delivery System (SDS) / Wall Mounted Stainless Steel Pump Panel

• Multiple stage solution delivery pump system (capable of 225psi)

• Wall mounted stainless steel pump panel• 8 composite direct injectors (Profile® ST)

• 12 composite direct injectors (Profile® MAX)

• In-bay temperature monitoring system

• Direct feed solutions system provides more control

• Medium pressure rinse capability

Ultimate Control Cabinet

• Electrical control panel 208VAC (VFD controls on seven motors)

• Washview® On-Site control interface (complete programming flexibility)

• Complete on-site programming and diagnostic capability

• Wash activation buy-up compatibility

• Comprehensive integrated security system

• In-bay voice module to communicate Profile® actions to customer

• Waterproof hand held RF remote control for manual movement and   machine functions

• Up to 12 wash packages can be saved and quickly copied to current  wash packages

• Auto home feature

Undercarriage Wash Manifold Options

• Undercarriage and Rocker Panel Blaster - 13 stainless steel nozzles; 5 on the undercarriage and 4 on each rocker panel blaster (for use with WW9150 high pressure pump option)

• Medium pressure 5 hole undercarriage manifold   (for use with non high pressure systems)

• Power Tower Wheel Cleaner® - 3 rotating nozzles per tower (pair)

Profile System Options

• 30 HP (6 - 5 HP motors) On-Board Dryer

• 40 HP (4 - 5 HP motors and 2 - 10 HP motors) On-Board Dryer

• In-bay horizontal pump station with composite covers and   in-bay stainless steel ultimate control cabinet

• UCC power conversion kit (converts standard UCC for use with 240 VAC 3 phase 60 Hz incoming power supply)

• Free standing frame (stainless steel or painted)

Wash Options

• Tri-Color foam application system - both entrance and exit

• Foam ‘n Flow® application system

• Medium pressure RO pump (13 GPM @ 110 psi) includes wall mount bracket and motor starter

• Spot free (RO) reject water reclaim system

• Reclaim system adapter kit

• Primary HS / Washview® MOBILE - High speed DSL or cable Internet connection capability - Internet access without a static IP address

• Secondary HS / Washview® MOBILE - Additional high speed DSL or cable Internet connection at same location for multi-bay sites

• Custom voice option for in-bay voice module

• Dual port injector system - To replace single injector for low   pressure application (order per injector)

• Premium door controls - Includes eyes• Ultimate door controls - Includes eyes

• Touch or Touch-Free Power Wheel Detailer®  (requires optional   high pressure pump)

• SpectraRayTM  - 4,528 LED lights - red, magenta, blue and green light show during the wash process or while idle

Custom Cloth Color Options and Custom Signage OptionsWater Treatment Equipment and Water Reclaim SystemsHigh Velocity® Drying Systems

ADDITIONAL STANDARD FEATURES

Extended Solution Delivery (ESD) includes Bug A’SaltTM technology, tire wheel injector and 2 additional applicationsHigh Pressure Delivery System - Ultra Compact Pump Station

OPTIONAL FEATURES

Extended Solution Delivery (ESD) - Includes Bug A’SaltTM technology, tire wheel injector and 2 additional medium pressure applicationsHigh Pressure Option - Ultra Compact Pump Station

In-Bay Wall Mount System - Stainless Steel

• Stainless steel travel rails (27’ 4” overall length)

• Stainless steel wall mounting hardware

• Floor mounted blue reflectors for visual guidance  • Wash bay stop / backup loading eye wall mounting kit - Standard bays

• Wash bay stop / backup loading eye pedestal mounting kit - Free standing frame or non-standard bays

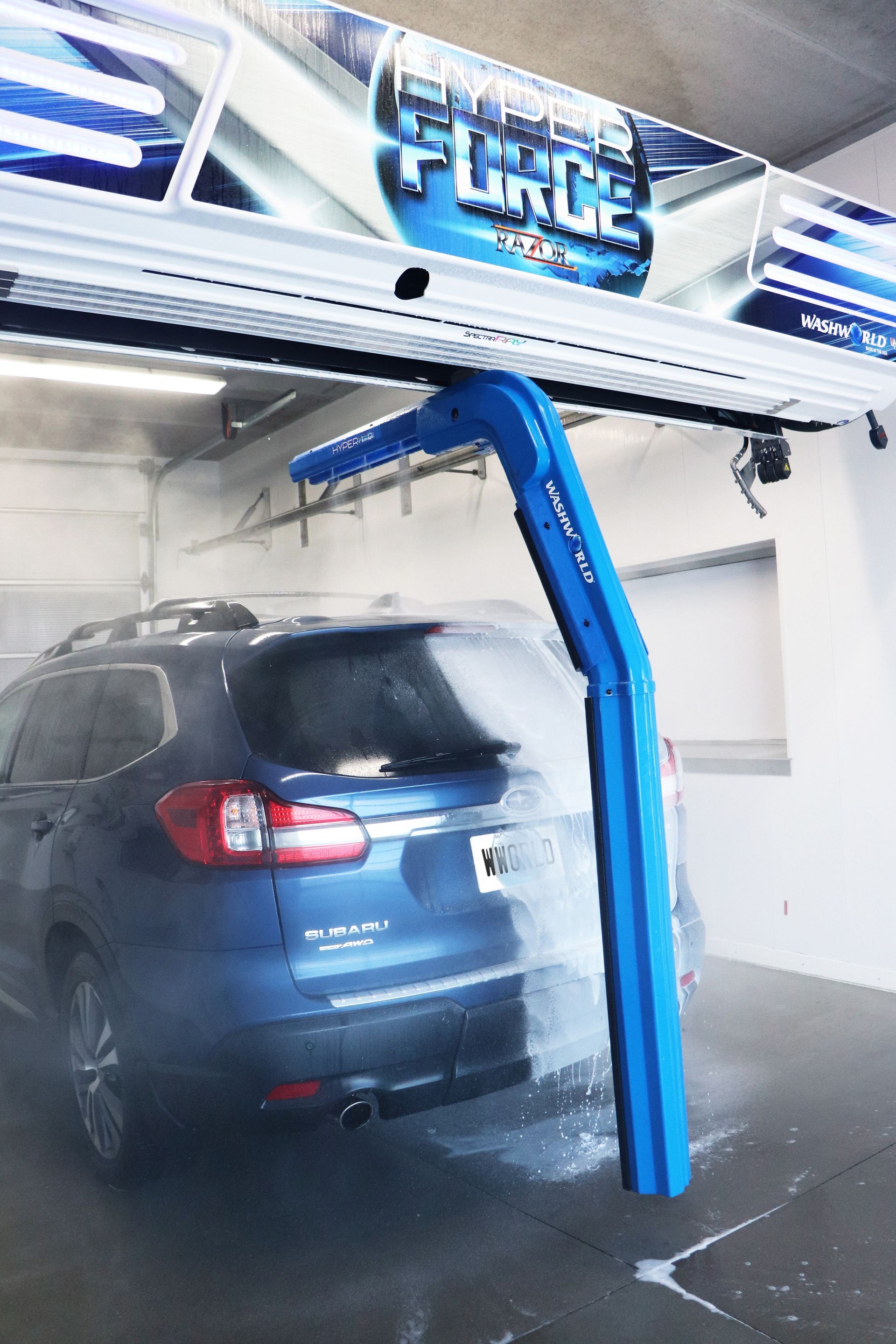

Overhead Carriage and Trolley Frame - Laser Cut Stainless Steel

• Variable frequency controlled belt drive carriage and trolley movement

• Stainless steel contouring spray arch with variable frequency control

• VS2® (Vehicle Sizing System)

• Virtual Attendant® - Maneuvers around wide mirrors and trailer hitches

• Visorclean - Nozzles strategically placed to clean under rear visor

• Spray arch cover - Rotationally molded polyethylene composite material

• Replaceable nozzle protector - Cross linked polyethylene foam

• Stainless steel carriage, totally enclosed climate proof motors and  gearboxes with precise movement and minimal rolling resistance

• Energy chain - No festoon, overhead cross brace or overhead swivel

• Flex Pass® carriage manifold

• Triple pass technology for optimal front and rear cleaning

• Bug A’SaltTM technology for additional seasonal cleaning

• Arch mirror detailing - Arch will turn to clean and rinse side mirrors

• Attention grabbing blue LED highlighting the Razor® entrance coverUndercarriage and Rocker Panel Blaster - Stainless Steel

• 13 stainless steel nozzles; 5 on the undercarriage and 4 on each   rocker panel blaster

Solution Delivery System - Powder Coated Carbon Steel Pump Station

• Cat 3535 Pump / 25 HP premium high efficiency ODP motor

• Variable flow and pressure with water conservation system

• High flow multiple stage solution delivery pump system

• Composite direct injection / No drift chemical metering system

• Electronic air regulator - Allows for each foaming application to have its own pre-set air pressure

• 3 Separate pre-soak applications

• 2 High pressure sealant / Drying agent applications

• 1 Low pressure drying agent / Protectant application

• Dual  inlet  low  pressure  source  selection  (hot  and  cold)

Ultimate Control Cabinet

• Electrical control panel 208VAC (soft start and stop variable  frequency motor controls on carriage, trolley and arch)

• Washview® On-Site control interface (complete programming flexibility)

• Complete on-site programming and diagnostic capability

• Wash activation buy-up compatibility

• Comprehensive integrated security system

• In-bay voice module to communicate Razor® actions to customer

• Waterproof hand held RF remote control for manual movement and machine function

• Auto home feature

Razor® System Options

• Razor On-Board Dryer system options- 30 HP (4 - 7.5 HP motors)- 30 HP (3 - 10 HP motors) - 40 HP (4 - 10 HP motors) - 45 HP (3 - 15 HP motors)

• In-bay horizontal pump station with composite covers and   in-bay stainless steel ultimate control cabinet

• UCC power conversion kit (converts standard UCC for use with      240 VAC 3 phase 60 Hz incoming power supply)

• Free standing frame (stainless steel or painted)

Wash Options

• Tri-Color foam application system

• Tri-Color foam application system with cold climate protection

• Foam ‘n Flow® application system

• HyperFlexTM  - 2 product applications applied at the same time   when paired with Flex Pass®

• SpectraRayTM  - 4,528 LED lights - red, magenta, blue and green  light show during the wash process or while idle

• Medium pressure RO pump (13 GPM @ 110 psi) includes wall mount bracket and motor starter

• Spot free (RO) reject water reclaim system

• Reclaim system adapter kit

• Cold climate package - Heat and weep

• Cold climate package - Heat and air blow down

• Cold climate package - Weep only

• Cold climate package - Heat only

• Primary HS / Washview® MOBILE - High speed DSL or cable Internet connection capability - Internet access without a static IP address

• Secondary HS / Washview® MOBILE - Additional high speed DSL or cable Internet connection at same location for multi-bay sites

• Water heater, on demand, direct vent, tank-less, natural gas

• Water heater, 12kw high capacity electric, stainless steel tank

• Power Tower Wheel Cleaner® - 3 or 6 rotating nozzles per tower

• Custom voice option for in-bay voice module

• Through wall stainless steel bulkhead manifold - For electrical   and plumbing from mechanical room to wash bay

• Dual port injector system - To replace single injector for low pressure application (order per injector)

• Premium door controls - Includes eyes

• Ultimate door controls - Includes eyes

Custom Signage Options

Water Treatment Equipment

Water Reclaim Systems

High Velocity Drying Systems

Razor EDGE Standard Features

• HyperFlexTM - 2 product applications applied at the same time when   paired with Flex Pass®

• SpectraRayTM  - 4,528 LED lights - red, magenta, blue and green   light show during the wash process or while idle

In-Bay Wall Mount System - Stainless Steel

• Stainless steel travel rails (27’ 4” overall length)

• Stainless steel wall mounting hardware

• Floor mounted blue reflectors for visual guidance  • Wash bay stop / backup loading eye wall mounting kit - Standard bays

• Wash bay stop / backup loading eye pedestal mounting kit - Free standing frame or non-standard bays

Overhead Carriage and Trolley Frame - Laser Cut Stainless Steel

• Variable frequency controlled belt drive carriage and trolley movement

• Stainless steel contouring spray arch with variable frequency control

• VS2® (Vehicle Sizing System)

• Virtual Attendant® - Maneuvers around wide mirrors and trailer hitches

• Visorclean - Nozzles strategically placed to clean under rear visor

• Spray arch cover - Rotationally molded polyethylene composite material

• Replaceable nozzle protector - Cross linked polyethylene foam

• Stainless steel carriage, totally enclosed climate proof motors and  gearboxes with precise movement and minimal rolling resistance

• Energy chain - No festoon, overhead cross brace or overhead swivel

• Flex Pass® carriage manifold

• Triple pass technology for optimal front and rear cleaning

• Bug A’SaltTM technology for additional seasonal cleaning

• Arch mirror detailing - Arch will turn to clean and rinse side mirrors

• Attention grabbing blue LED highlighting the Razor® entrance coverUndercarriage and Rocker Panel Blaster - Stainless Steel

• 13 stainless steel nozzles; 5 on the undercarriage and 4 on each   rocker panel blaster

Solution Delivery System - Powder Coated Carbon Steel Pump Station

• Cat 3535 Pump / 25 HP premium high efficiency ODP motor

• Variable flow and pressure with water conservation system

• High flow multiple stage solution delivery pump system

• Composite direct injection / No drift chemical metering system

• Electronic air regulator - Allows for each foaming application to have its own pre-set air pressure

• 3 Separate pre-soak applications

• 2 High pressure sealant / Drying agent applications

• 1 Low pressure drying agent / Protectant application

• Dual  inlet  low  pressure  source  selection  (hot  and  cold)

Ultimate Control Cabinet

• Electrical control panel 208VAC (soft start and stop variable  frequency motor controls on carriage, trolley and arch)

• Washview® On-Site control interface (complete programming flexibility)

• Complete on-site programming and diagnostic capability

• Wash activation buy-up compatibility

• Comprehensive integrated security system

• In-bay voice module to communicate Razor® actions to customer

• Waterproof hand held RF remote control for manual movement and machine function

• Auto home feature

Razor® System Options

• Razor On-Board Dryer system options- 30 HP (4 - 7.5 HP motors)- 30 HP (3 - 10 HP motors) - 40 HP (4 - 10 HP motors) - 45 HP (3 - 15 HP motors)

• In-bay horizontal pump station with composite covers and   in-bay stainless steel ultimate control cabinet

• UCC power conversion kit (converts standard UCC for use with      240 VAC 3 phase 60 Hz incoming power supply)

• Free standing frame (stainless steel or painted)

Wash Options

• Tri-Color foam application system

• Tri-Color foam application system with cold climate protection

• Foam ‘n Flow® application system

• HyperFlexTM  - 2 product applications applied at the same time   when paired with Flex Pass®

• SpectraRayTM  - 4,528 LED lights - red, magenta, blue and green  light show during the wash process or while idle

• Medium pressure RO pump (13 GPM @ 110 psi) includes wall mount bracket and motor starter

• Spot free (RO) reject water reclaim system

• Reclaim system adapter kit

• Cold climate package - Heat and weep

• Cold climate package - Heat and air blow down

• Cold climate package - Weep only

• Cold climate package - Heat only

• Primary HS / Washview® MOBILE - High speed DSL or cable Internet connection capability - Internet access without a static IP address

• Secondary HS / Washview® MOBILE - Additional high speed DSL or cable Internet connection at same location for multi-bay sites

• Water heater, on demand, direct vent, tank-less, natural gas

• Water heater, 12kw high capacity electric, stainless steel tank

• Power Tower Wheel Cleaner® - 3 or 6 rotating nozzles per tower

• Custom voice option for in-bay voice module

• Through wall stainless steel bulkhead manifold - For electrical   and plumbing from mechanical room to wash bay

• Dual port injector system - To replace single injector for low pressure application (order per injector)

• Premium door controls - Includes eyes

• Ultimate door controls - Includes eyes

Custom Signage Options

Water Treatment Equipment

Water Reclaim Systems

High Velocity Drying Systems

In-Bay Wall Mount System - Stainless Steel

• Stainless steel travel rails (27’ 4” overall length)• Stainless steel wall mounting hardware

• Floor mounted blue reflectors for visual guidance • Wash bay stop / backup loading eye wall mounting kit - Standard bays

• Wash bay stop / backup loading eye pedestal mounting kit - Free standing frame or non-standard bays

Overhead Carriage and Trolley Frame - Laser Cut End Plates

• Variable frequency controlled belt drive carriage and trolley movement

• Stainless steel contouring spray arch with variable frequency control

• VS2® (Vehicle Sizing System)

• Virtual Attendant® - Maneuvers around wide mirrors and trailer hitches

• Visorclean - Nozzles strategically placed to clean under rear visor

• Spray arch cover - Rotationally molded polyethylene composite material

• Replaceable nozzle protector - Cross linked polyethylene foam

• Stainless steel carriage, totally enclosed climate proof motors and gearboxes with precise movement and minimal rolling resistance

• Energy Chain - No festoon, overhead cross brace or overhead swivel

• Triple pass technology for optimal front and rear cleaning

Solution Delivery System - Powder Coated Carbon Steel Pump Station

• General Pump - Emperor HTCK40 / 25 HP premium high efficiency ODP motor

• High flow multiple stage solution delivery pump system

• Composite direct injection / No drift chemical metering system

• 2 Separate pre-soak application systems

• 1 High pressure sealant / Drying agent application

• 1 Low pressure drying agent / Protectant application

• Variable flow and pressure with water conservation system

Ultimate Control Cabinet

• Electrical control panel 208VAC (soft start and stop variable  frequency motor controls on carriage, trolley and arch)

• Washview® On-Site control interface (complete programming flexibility)

• Complete on-site programming and diagnostic capability

• Wash activation buy-up compatibility

• Comprehensive integrated security system

• Auto home feature

Razor®  XR-7 System Options

• In-bay horizontal pump station with composite covers and   stainless steel in-bay ultimate control cabinet option

• UCC power conversion kit (converts standard UCC for use with  240 VAC 3 phase 60 Hz incoming power supply)

• Free standing frame (stainless steel or painted)

Wash Options

• Cat 3535 pump option (replaces General Pump - Emperor HTCK40)

• ESD - Extended Solution Delivery option without cold climate protection - Includes: Tri-Color foam, (1) additional low pressure, (1) additional high pressure for sealant/drying agent applications

• ESD - Extended Solution Delivery option with cold climate protection - Includes: Tri-Color foam with cold climate protection, (1) additional low pressure, (1) additional high pressure for   sealant/drying agent applications

• Dual inlet low pressure source selection valve control hot and cold

• Medium pressure RO pump (13 GPM  @ 110 psi) - Includes wall mount bracket and motor starter

• Cold climate package - Heat for VS2® sensors, carriage and rail   travel surfaces, belt drive system, weep for arch

• Primary HS / Washview® MOBILE - High speed DSL or cable     Internet connection capability - Internet access without a static IP address

• Secondary HS / Washview® MOBILE - Additional high speed DSL or cable Internet connection at same location for multi-bay sites

• Reclaim adapter (plumbing inlet and controls for external reclaim   system)

• Water heater, on demand, direct vent, tank-less, natural gas (wall   mount)

• Water heater, 12kw high capacity electric, stainless steel tank

• Undercarriage with driver side and passenger side rocker panel   blasters with 4 nozzles each side, includes control valves and wiring on pump station    • Undercarriage cold climate - Includes control valves and wiring   on pump station

• Power Tower Wheel Cleaner® - 3 rotating nozzles per tower (pair)

(Note: must include undercarriage)

• Power Tower Wheel Cleaner® - 6 rotating nozzles per tower (pair)

(Note: must include undercarriage)

• Through wall stainless steel bulkhead manifold - For electrical   and plumbing from mechanical room to wash bay

• Dual port injector system - To replace single injector for low   pressure application (order per injector)

• Premium door controls - Includes eyes

• Ultimate door controls - Includes eyes

• Voice prompts

Drying System Options

Water Treatment Equipment
